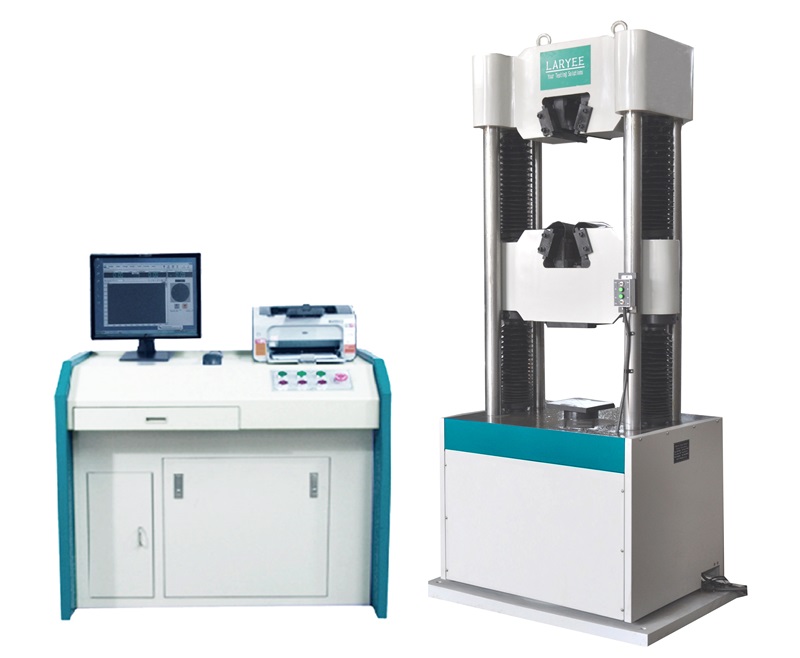

Model: UH64100
Applications:
This series machines are widely used for tension, compression, bending and shearing test of metal materials and also used for compression and bending test of nonmetal materials, such as cement, concrete and so on. Equipped with simple accessories, it can be used for mechanical property testing of fastener, wire rope and components. They are perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining enterprise. The machine is calibrated according to ASTM E4 and ISO7500-1. It can do many different kinds of test according to according to ISO6892, ISO7438, ASTM A370, ASTM E8 and BS EN standards.
Video
Features:
l Hydraulic clamp for tension test, wedge clamp auto-lock by loading, round and flat grip changeable for different samples
l Host machine adopt oil cylinder on bottom type structure, hydraulic load, hydraulic clamping specimen, tensile jaws fixed on cross beam, easily controlling of install and release samples；
l Adopt Panasonic servo motor driver oil pump, with fast response, low noise, low temperature, safe and reliable;
l Micron level clearance sealing instead of O-ring sealing ring sealing, loading stable and maintenance-free:
l The controller is external type and can connected to the computer with USB;
l N, KN, lbf, gf, kgf can be converted at will;
l Speed control from 0.5 to 50mm/min；
l Supports up to 3 force sensors and 8 extensometers;
l Test process, result display, result analysis, result print, all the function can be controlled by the computer, testing data and curve can real-time display during test;
l Computer 3 close-loop control testing mode of load, deformation displacement；
l Various testing curves, Load-Time, Extension-Time, Stress-Strain, Load- Extension, etc. Can zoom and analysis at any point in the curve:
l Automatically calculate tensile strength, yield strength, modulus of elasticity, Rp0.2, Rt0.5;
l Support to change Excel format report, easy to pinpoint the location of the data;
l The same group sample can continuous testing, and can be analyzed separately for each test results;
l Can store testing result, testing curve and data
l Have“Stop while destroy” function, can automatic stop working when specimen is broken；
l Remote controller adjusts the machine crosshead before test and operate the test conveniently；
l Support different version of Microsoft windows OS of Windows 8/10/11 and so on.
l Can be connected to the information network system of the enterprise or laboratory.
Software
The picture is Test software window interface, including Load, Deformation, Displacement and control and curve display board, real-time display measuring curve in the testing process.
Specification:
Description | Technical parameters |
Model | UH64100 |
Maximum force | 1000KN |
Measuring range of force | 1%-100% of load capacity |
Accuracy | ±0.5% of indicated value |
Resolution of displacement measure | 0.01mm |
Range of displacement speed | 0.5mm/min-50mm/min |
Clamping diameter of round specimen | φ13 - φ60mm |
Clamping thickness of flat specimen | 0 - 40mm |
Valid width between columns | 600mm |
Valid tension space | 700mm |
Valid compression space | 600mm |
Compression plate size | 210*210mm |
Maximum piston stroke | 250mm |
Power supply | 3P~220/380V, 50/60Hz |
Working condition | RT10℃~30℃, relative humidity≦80% |
Host machine dimension | 1100×850×2530 mm |
Net weight | 3000Kg |
Test Report：
Our Knowledgeable Team is Here to Help
Our team is composed of experienced experts who are eager to help you find a solution that suits your business.
Related Products

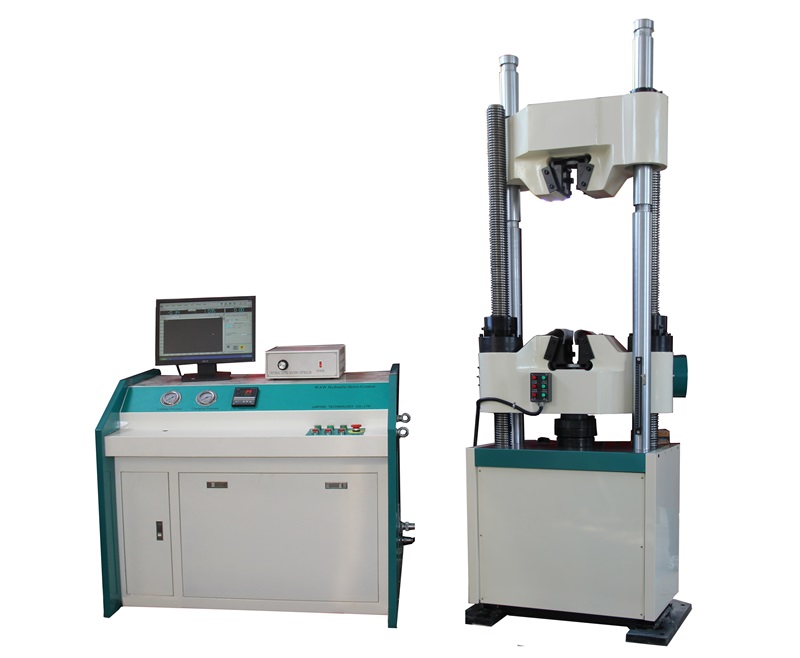

Computer Control Servo Hydraulic Universal Testing Machine
