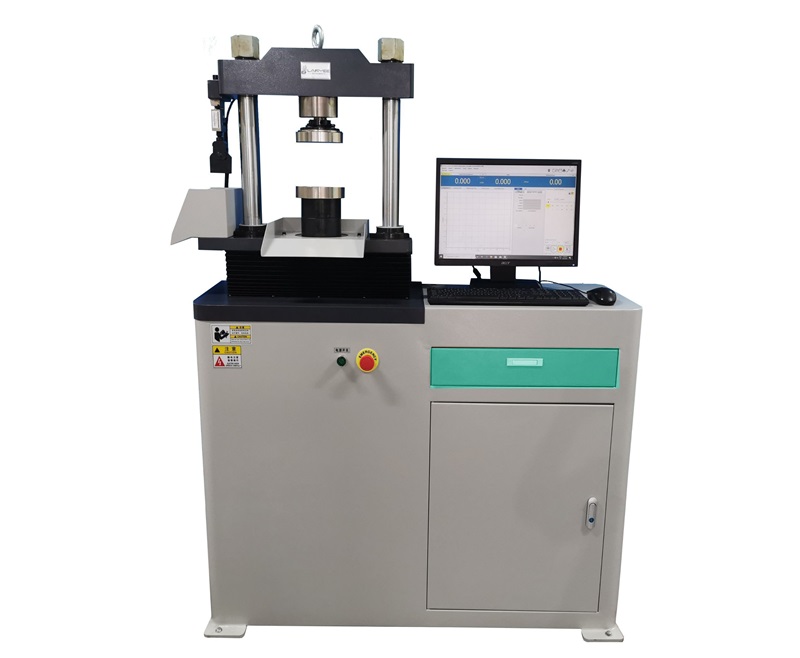

Model: CCFT-300
Applications:
This series machine is mainly used for the determination of cement compressive strength, flexural strength. Adopts double test space,can meet the standard of ISO-R679《Cement strength test method》GB/T17671-1999《Cement mortar strength testing method》which rules all the operation procedures of compressive strength, flexural strength of cement. This machine adopts digital valve to realize the compressive and flexural of constant load automatically loaded,has the characteristics of Computer program control the testing process and data processingautomatically,test data storage and automatically printing test report.They are essential testing instruments for quality control testing section,university and college,research institution and industrial and mining enterprise laboratory.
Video:
Features：
1. The testing machine adopts a double-column frame structure. The testing machine adopts a high-precision servo motor speed control system, which can realize a wide range of adjustment of the test speed (0.01-50mm/min), and the test process is stable
2. The computer built-in controller is used to independently complete the setting of test parameters, control of the test process, data acquisition, processing, analysis and display during the test process.
3. The data processing system can count and process the test data, and then output and print various required test
4.Compared with tranditional Electro-hydraulic servo testing machine
a :Using high-precision servo motor and using high-precision load sensor to measure force
b: Low noise during the test.
c: No pollution problems caused by hydraulic oil running, running, dripping and leaking.
d: There is no problem that the servo valve is polluted and stops working.
e: High reliability for long-term use, maintenance-free (no troublesome replacement of hydraulic oil).
Specification:
Model | CCFT-300 | |
Maximum test force: | Compression 300KN | Flexural 10KN |
Test force measurement range and test accuracy | 200N-300 KN; accuracy better than 1% (can do flexural test) | |
Adjustable range of test force speed | 1-10 KN/S (accuracy higher than ±5%); step-less setting; | |
The maximum distance between the upper and lower platens | 260mm | |
The distance between the columns is not less than | 330mm | |
Size of upper and lower platen | Φ140mm. | |
Test method | single-piece test can be done; each group of 6-piece tests can be completed continuously | |
Power | 1P 220V 50HZ | |
Host size(length x width x height) | 830x530x1450mm. | |
Weight | 450kg | |
Standard accessories:
1. Test machine host a set of high-precision servo motors and drive systems
2. high-precision load sensor (300kn) 10kn anti-bending special sensor
3. One set of electrical control system
4. A set of upper and lower pressure plates (Φ140) (with 1 set of anti-folding attachments)
5. A copy of special software for testing machine control and data processing
6. HP brand computer
