Model: UE34200/UE34300
Application:

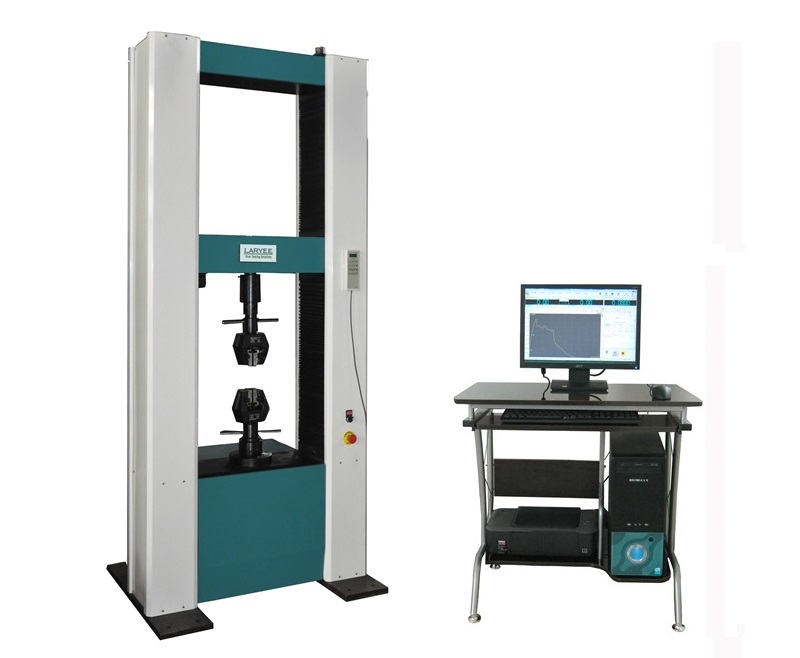

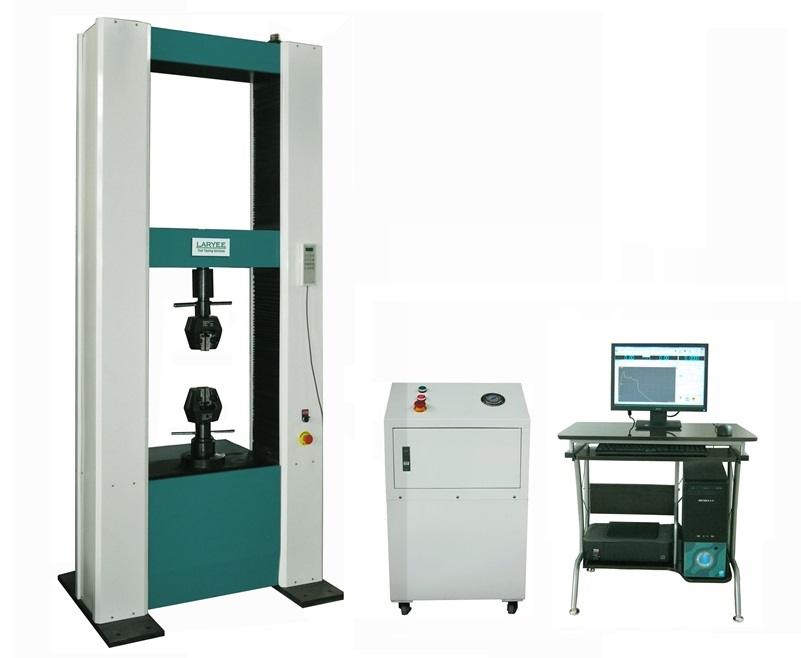

This electronic universal testing machine is comprised of Main frame, mechanical limited switch, electrical system, testing fixture, computer and printer. It is suitable for tensile, compression, bending and other mechanical property for metal and non-metal material, such as rubber, plastic power cable, composite material, metal bar, metal sheet, spring and so on. They are essential testing instrument for electronic enterprise, metal and non-metal manufacturer, university, college and research institute. By adding different grip, it can execute ISO, ASTM, DIN, EN, JIS, testing standard, it also can equip with customized testing grip according customer's requirement.
Video
Features:
1.High rigidity structure, crossbeam accurate alignment, reliable floor type structure；
2.Equipped with mechanical limited switch, emergency stop switch etc safety protection mechanism;
3.Driver system adopt high precision ball screw, transmission smoothly, improve the transmission efficiency and accuracy of displacement；
4.Adopt Panasonic servo motor drive, speed control with high precision and low noise；
5.AdoptCeltron high accurate load cell to test the force, high resolutions；
6.The controller is external type and can connected to the computer with USB;
7.N, KN, lbf, gf, kgf can be converted at will;
8.Speed control from 0.1 to 500mm/min by servo motor；
9.Supports up to 3 force sensors and 8 extensometers;
10.Test process, result display, result analysis, result print, all the function can be controlled by the computer, testing data and curve can real-time display during test;
11.Computer 3 close-loop control testing mode of load, deformation displacement；
12.Various testing curves, Load-Time, Extension-Time, Stress-Strain, Load- Extension, etc. Can zoom and analysis at any point in the curve；
13.Automatically calculate tensile strength, yield strength, modulus of elasticity, Rp0.2, Rt0.5;
14.Support to change Excel format report, easy to pinpoint the location of the data;
15.The same group sample can continuous testing, and can be analyzed separately for each test results；
16.Can store testing result, testing curve and data；
17.Have "Stop while destroy" function, can automatic stop working when specimen is broken；
18.Remote controller adjusts the machine crosshead before test and operate the test conveniently；
19.Support different version of Microsoft windows OS of Windows 8/10/11 and so on.
20.Can be connected to the information networksystemof the enterprise or laboratory.
Software:

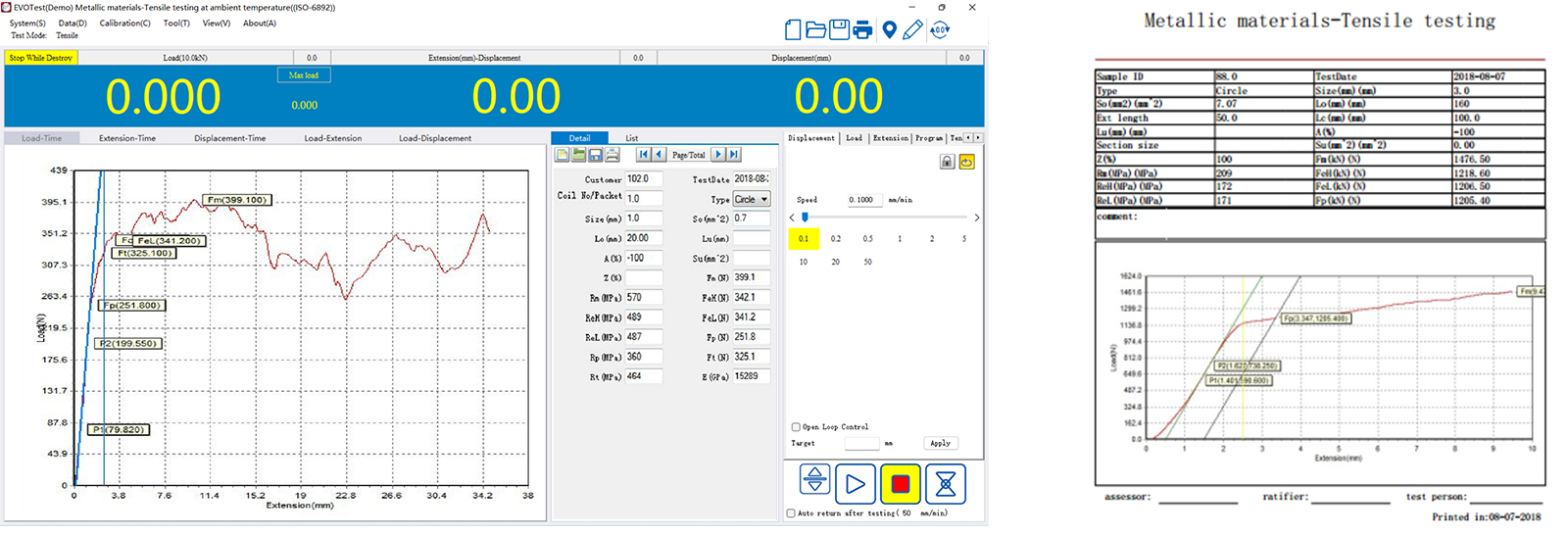

The picture is Test software window interface, including Load, Deformation, Displacement and control and curve display board, real-time display measuring curve in the testing process.
Key Specification:
Description | Technical parameters |
Maximum force | 200KN/300KN |
Machine type | Floor |
Grade | 0.5 |
Measuring range of force | 0.4%~100%FS |
Accuracy | ±0.5% |
Resolution of force | 1/500000 of maximum force |
Resolution of displacement | 0.001mm，Accuracy：≤±0.5% |
Speed range of crosshead | 0.001~500mm/min |
Valid tension space | 600mm |
Total Crosshead Travel | 1250mm |
Sample thickness | Flat jaw: 0-18mm Round jaw: φ10～φ25mm (Flat jaw:0-32mm; Round jaw:φ4～φ39mm can be ordered) |
Power supply | 3P,380V,50/60Hz（3P,220V can be ordered） |
Working condition | RT 10~40℃,relative humidity≦90% |
Dimension of host machine | 1160×950×2700 mm 1800kg |
