Model: UE1501/02/05
Application:

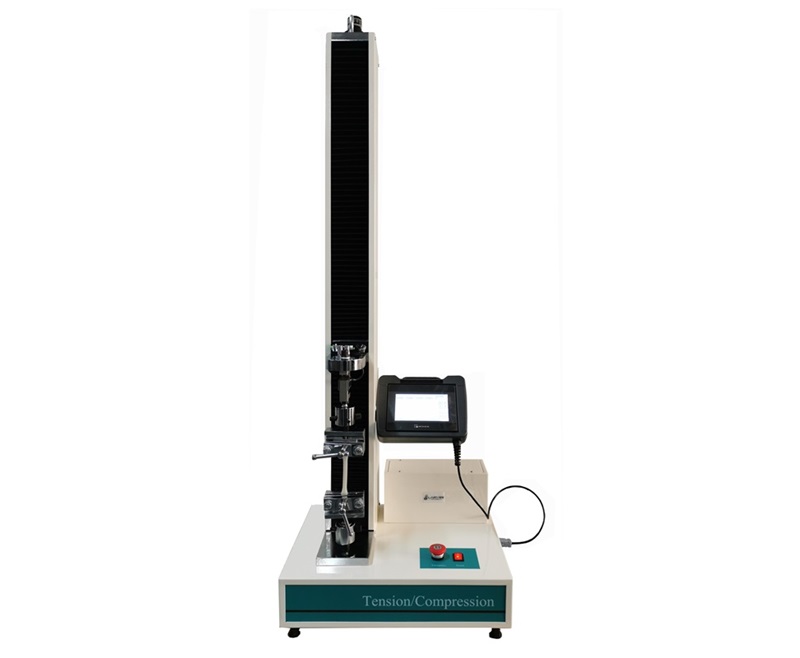

Digital electronic universal testing machine mainly consists of host machine, mechanical limit switch, electrical system, test accessories etc.This machine is suitable for tensile,compression for metal and nonmetal material,such as plastic,rubber,thread, composite material, profiled bar,wood,waterproof roll and all ASTM,ISO,JIS,DIN,BS,EN relative material mechanical testing standards.The machine is calibrated according to international norms requirement as ASTM E4,ASTM E83,ISO7500-1, ISO9513 and supply a full detailed calibration certificate.They are essential testing instruments for quality control section,university and college,research institution and mining enterprise quality lab.
Video
Specification：
Technical parameters | |
Max testing force | 1/2/5KN |
Crosshead move range | 0-1000mm |
Measuring range of force | |
Accuracy | ±1%(±0.5% as special order) |
Resolution of force | 1/300000 of maximum force |
Resolution of displacement | 0.01mm，Accuracy：≤±1 % |
Speed range of crosshead | 0.01~500mm/min (Max 1000 mm/min ordered) |
Valid tension space | 750mm |
Valid compression space | 850mm |
Flat sample thickness/width | 0-10mm/50mm |
Power supply | 1P,220V±10%,50/60Hz |
Working condition | RT10℃~40℃，relative humidity≦90% |
Dimension of host machine | 500×400×1500 mm |
300Kg |
Features:
l Using 7 inches touch screen, clear and direct, the screen can also show many contents, such as: number, date, time etc. Test force digital display, continuous adjustable speed, speed servo control from 0.01mm/min to 500mm/min by servo motor；
l Easy to install many kinds of test grips and accessories to do many kinds of test;
l With mechanical limit switch, emergency stop switch, protect accessories and sensors；
l Driver system adopt high precision ball screw, transmission smoothly, improve the transmission efficiency and accuracy of displackement；
l Adopt Panasonic servo motor drive, speed control of high precision, low noise；
l Adopt OMRON photoelectric encoder, small volume, high precision, reliable work；
l Adopt Celtron load cell, optional extensometer to test the force and extension. reading resolution can be 1/300000 of full range；
l A group sample can continuous testing, powerful test data operation function, can be convenient to modify, delete data and invoke operations；
l Have “Stop while destroy” function, when specimen is broken system automatic stop；
l Later software and USB lines can be added to implement software control to achieve more powerful functions.

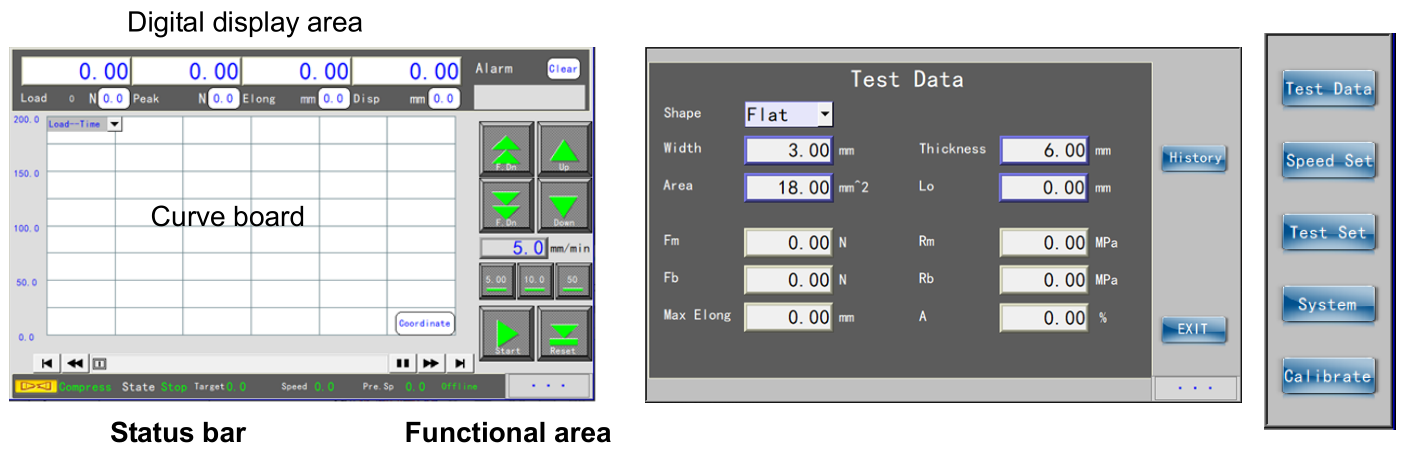

Control panel:
Control panel include four parts：Digital display area；Curve board；Status bar；Functional area as follow：
l Digital display area: Real-time display of force value, force peak value, deformation and displacement value from left to right
l Curve board: It can switch the display of force - time, displacement - time and deformation – time
l Status bar: Displays the current state of the machine。
l Functional area: Include Up、Down、Start、Reset and speed select
l The units of the entire measurement and control system load can be switched at will, without recalibration.
l Currently supported units have N, KN, lbf, gf, kgf,
