Model: CCD
Introduction

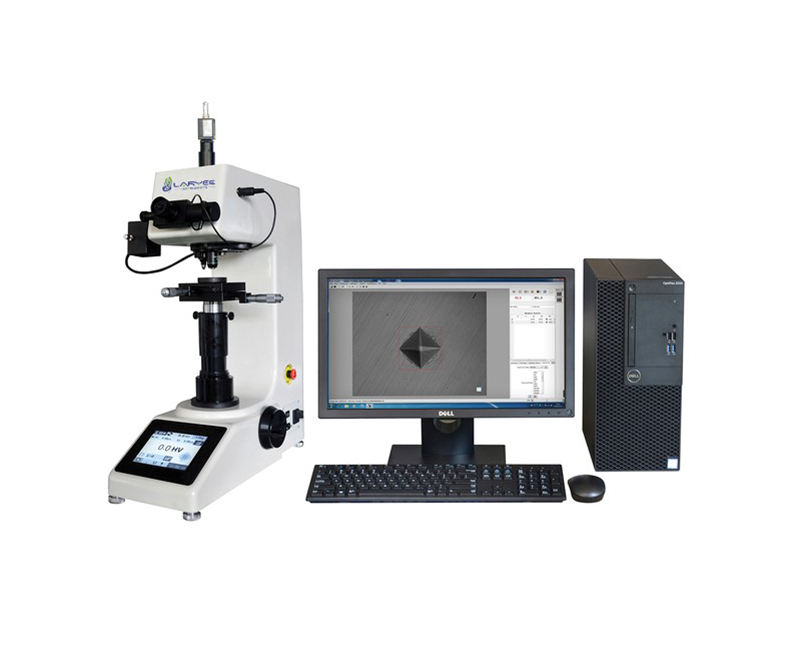

CCD Image automatic measuring system combines the computer software and the hardness tester, the whole
test procedure is finished through the easy operation of keyboard and mouse click, which avoids the visual fatigue and man-made error and can test different kinds of hardness. It is equipped with a CCD camera easy to observe,and can directly observe and measure the indentation on the display. For test conditions of setting, the results can be clearly and conveniently operated and displayed. By measuring software, it can achieve a single point measurement and random multi-point measurement, data statistical measurement, arbitrary two-point or multi-pointmeasurement for the spacing layer depth. It can be measured along the X or Y two direction, automatically carryout the calculation of infiltration depth, statistical calculations, conversion, display curve, judging whether qualified according to the input decision value ( such as 550) and save the result as WORD or EXCEL documents.

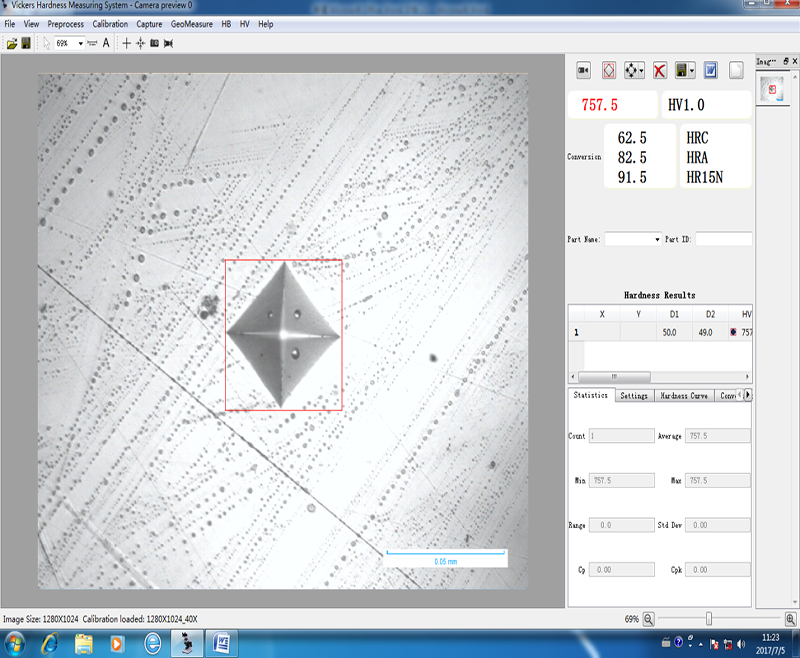

The measurement and control of the tester system is to use high resolution image device, display the indentationclearly on the computer screen. Through the software for signal conversion, it automatically measures the hardness value of indentation. By designated and continuous testing process, it can draw the depth and gradient curve diagram. It supports WIN7, WINXP etc operating system. The Vickers, Knoop and carburizing layer can be tested.Hardness value can be carried out various forms of automatic conversion. You can choose high or low magnification objective lens according to your need. Image definition: > 540lines. It can regulate the contrast and brightness of the image, can respectively open, store or print the image files and data files. You can view the data files and image files any time, and print the data files by the form of tables and curves.
Standard Configuration:
1. Computer (CPU: I3, Memory: 4G, HD:500G, 19 inch LCD screen) 1 set
2. Ink Jet Printer 1 set
3. CCD Camera (1.30 Million Pixel) 1 set
4. Adapter Tube 1 pc
5. USB Key 1 pc
6. Measuring Software 1 pc
