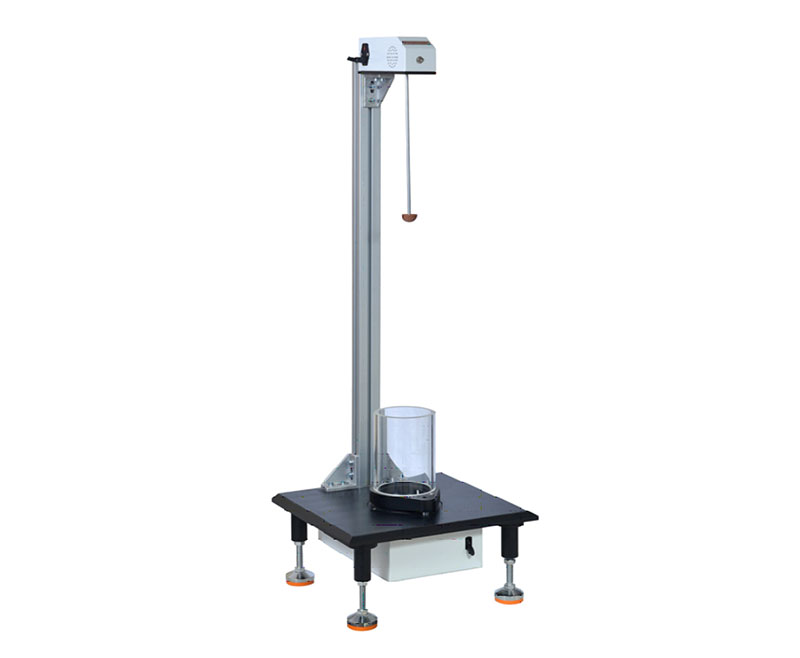

Digital Falling Dart Impact Testing Machine

Model: FIT1130

Application:

FIT1130 Falling dart impact testing machine applies to impact test for all kinds of plastic film and sheet. It confirms to ASTM 1709-04, ISO7765.1-1988"Plastic film and sheet- Determination of impact resistance by the free-falling dart method"standard. It has mathematical statistics, automatically calculates result and prevents the second time impact function. The machine conforms to the standard GB9639、ZBN72026。

Inquire Now Next Product

Specification:

Incremental weights: Method A: min 5g; Method B: Min 15g

Radius of dart head: Method A: R19±0.5mm; Method B: R25±0.5mm

Impacting height: Method A: 660±10mm; Method B: 1500±10mm

Specimen clamp: Inside diameter Ø125±2 mm;

Outside diameter: Ø150±3 mm

Dart head quality: 50-2000g 5g/increment

The thickness of specimen: Less than 1.0mm

Max impact energy: 30J

Max impact height: 1500mm

Controller : PLC

Power: AC220V, 50Hz

Working environment: 10～35℃

Weights with machine: 5g (5 pcs), 15g (15 pcs), 30g (10 pcs), 45g (10 pcs),60g (10 pcs), 90g (15 pcs)

The machine weight: 150kgs
