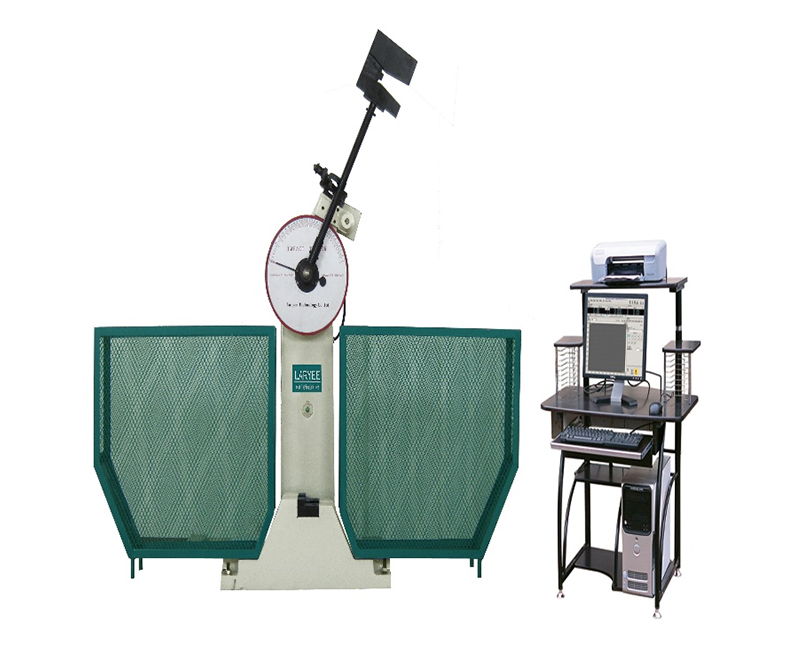

Computer control Charpy (simple-beam) impact testing machine

Model: CMT23 series

Application:

Charpy (simple-beam) impact testing machine is used for determining the impact capability of ferrous metal materials with high toughness, especially for steel and iron material and their alloy. This computer indicating model can be operated automatically.The pendulum rising, impact free releasing is realized as automatically by control remote and computer control software.It is essential testing instruments for university lab, college, research Institution, quality testing section, industrial and mining enterprise.Calibrated according to ISO 13802.Can do test according to ISO 148, ASTM E23.

Inquire Now Next Product

Video:

Features:

1.Two Pendulums (big and small) and two scale reading.

2.Safety pin guaranties the impact action. Protection shell avoids the hit and break sample splashing.

3.Electromagnetic clutch holds the raising pendulum. Power sudden off still in safety.

4.Fully computer PCI sockets PCI DSP control card and I/O data processing, test data statistical function, store and printing function, dial gauge and software put out test result synchronously Charpy (simple-beam) impact testing machine

Specification:

Model	CMT2330	CMT2350
Impact energy	150J; 300J	250J; 500J
Impact velocity	5.2m/s	5.4m/s
Raising angle	150°
Striker tip angle	30°
Anvil taper angle	11°
Pendulum pole length	750mm	800mm
Standard sample span	40 mm
Round angle radius of grips	R1-1.5mm
Round angle radius of striking edge	R2-2.5mm as standard, R8mm (can be ordered)
Power supply	3 Phase~ 380V/220V,50Hz/60 Hz

NOTE: Standard specimen size: 10x10x55mm (U,V notched)
