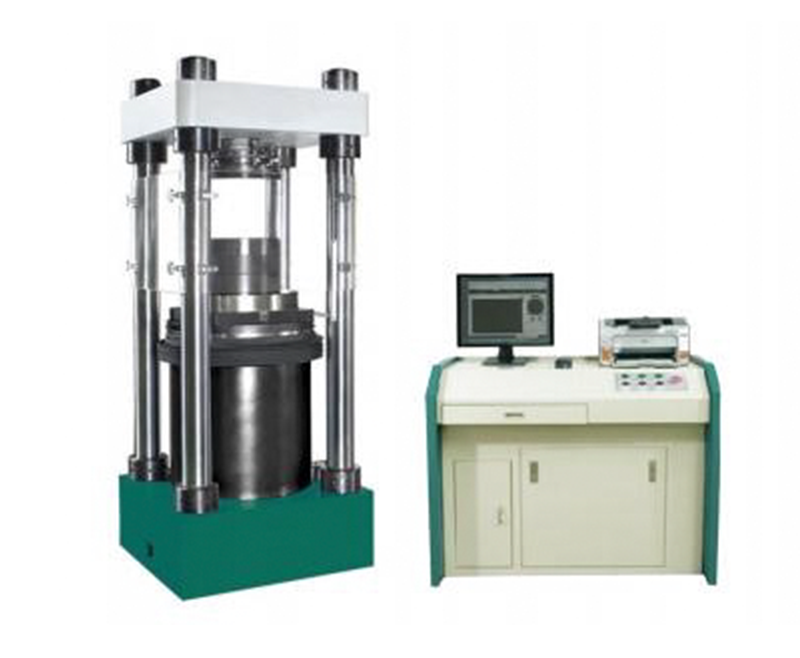

Servo Hydraulic Compression Testing Machine

Model: CH84100/84200/84300

Applications:

This testing machine is designed to test the compression strength of cement, concrete and other building material. Adding the optional fixture, it can test the red brick compression test.The total machine is convenient to control the total test process automatically,and getting the necessary test result based on the relevant testing standard such as ASTM C39, EN 12390.It is an essential testing equipment for the building engineer quality control department,research institute and university education instrument.

Inquire Now Next Product

Composition detail:

1. Test machine host

2. Oil source of the host machine

3. High-precision hydraulic sensor

4. Pull wire encoder

5. Compression attachments and pads

6. Testing machine control system

7. Special pressure test control software

8. Computers and printers

9. Protective cove

Specification:

Model	CH84100	CH84200	CH84300
Maximum test force	1000kN	2000kn	3000kn
Effective force measurement range	4%- 100%FS
Relative error of test force indication	≤±1%
Test force resolution	± 1/300000
Size of upper and lower pressure plate:	Φ220mm	Φ300mm	Φ300mm
Maximum spacing between two plates	300mm	500mm	500mm
Acceleration speed	1kN/s~20kN/s
Maximum speed of no-load movement of piston	50 mm/min
Displacement measurement range	0~ 150 mm
Width of testing space(mm)	400
Maximum stroke of piston	150mm
Power supply	Three-phase 380V, 50HZ
Host machine(mm)	850x780x1500	980x850x1780	980x850x1780
Control(mm)	500x700x1020	500x700x1020	500x700x1020
Weight(kg)	2500	3200	3500

Compression test software


1. Fully support win7/8/ 10 and other operating systems under the multi-language switch at any time;

2. This measurement and control software can realize multi-axis control: a set of measurement and control software can realize multi-axis coordinated loading;

3. Adopt standard database to manage test data, automatically save test data and curves, and provide networked data interface;

4. This measurement and control software provides users with a variety of report printing interfaces and report printing templates, users can also use EXCEL table form to edit and print reports, and also support the batch printing function of reports;

5. This measurement and control software can set the test force overrange protection measures to set a safe test environment for the user;

Test Report:
