Model: CPT-100
Application:

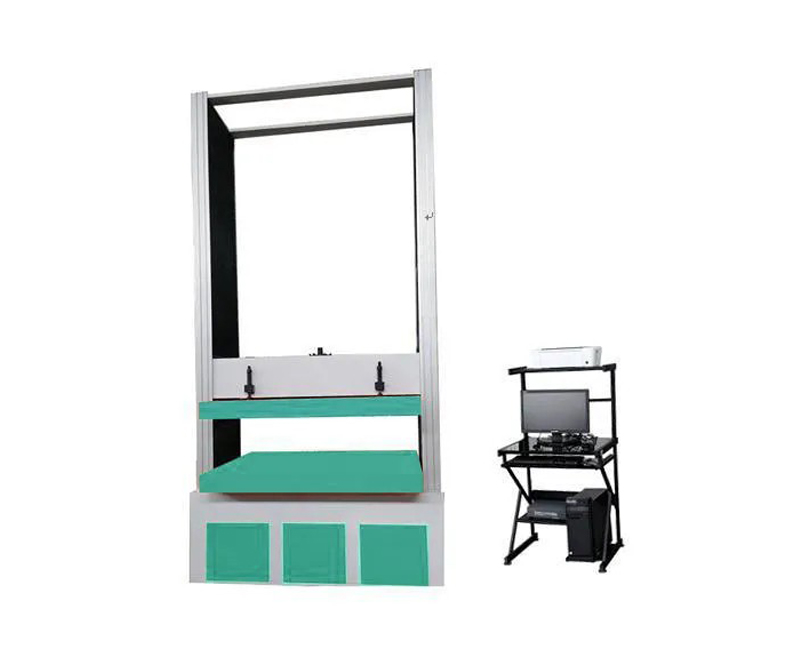

The CPT-100 model consists of a host machine and software control system. A pressure plate is installed between the upper and lower beams to test the specimen.Mechanical part consists of load frame and
attachments. Motor, decelerator and AC servo system under working bench construct force driving system. Control box, control and data processing software construct control and data processing system of testing machine.
Specification:
1.Max test capacity: 100KN
2.Measuring force range: 1%-100%FS
3.Testing force accuracy: ±1%
4.Resolution of force: ±1/300000
5.Compression space: 1200mm
6.Testing space between ball screw: 1800mm
7.Pressing plate dimensions:1700 x1700mm

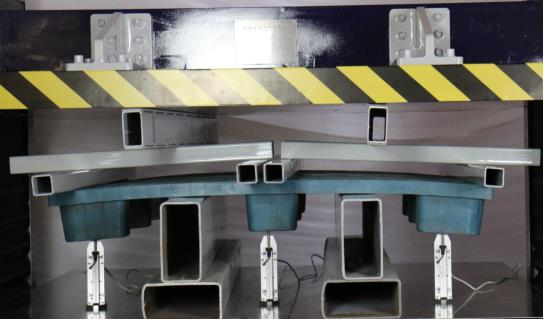

Test One

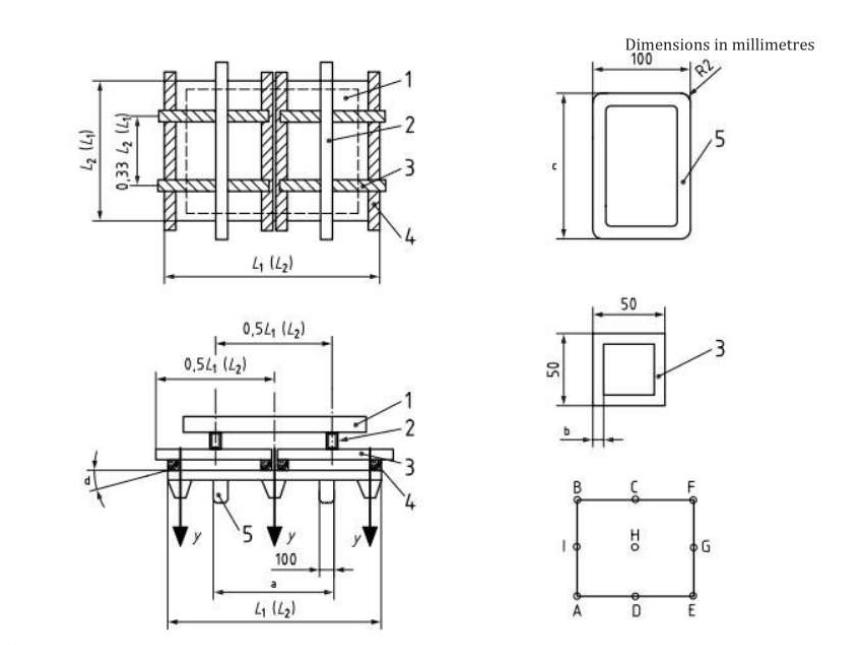

Test Two

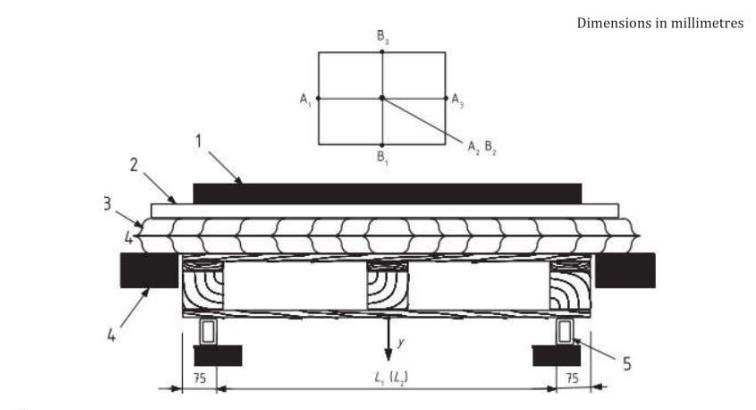

Test Three

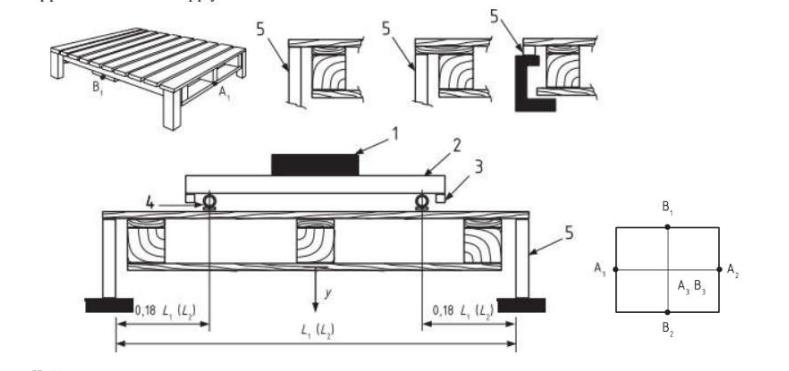

Test Four

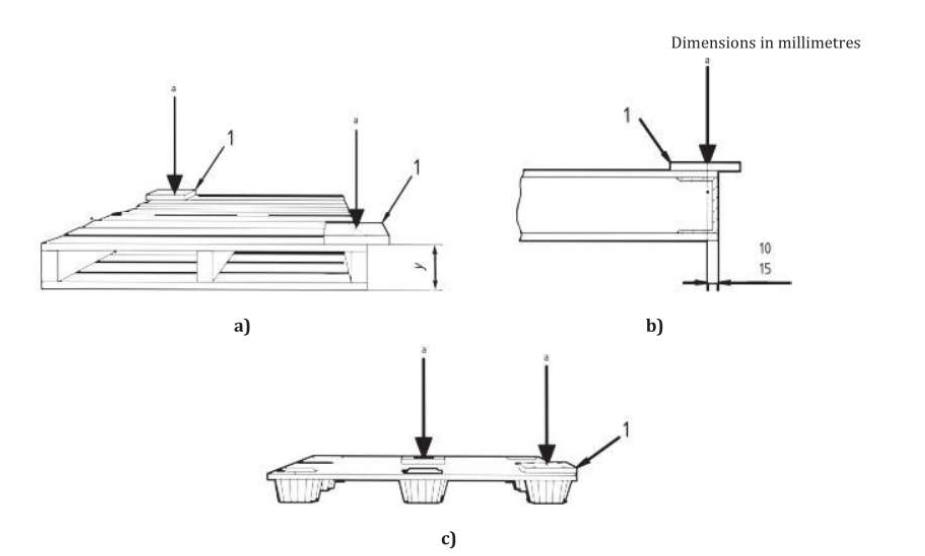

Test Five
